Abstract
Introduction
The rapid advancement of omics and sequencing technologies has led to an accelerated growth of genomic data.
Driven by this data, there are similar increases in the number of available bioinformatics software tools, often containing novel and diverse algorithms of particular interest to biomedical researchers.[1,2].
Biomedical researchers wanting to use this software often have access to high-performance clusters (“clusters”), but lack the operating system-level permissions and advanced skills required to install and run the software.
None of the necessary skills are currently included in the traditional life science curriculum at major universities.
Usability is further hindered by the absence of any standardization and the wide variety of software development tools employed.
This is directly observable in many academic software tools lacking a user-friendly interface[5].
As the dependence of biomedical researchers on computational software continues to increase, software developers need to consider more user-friendly distribution and install methods.
Modern software distribution, having already faced user-friendliness issues, is already becoming more reliant on platforms such as package managers[6,7] and containers[8].
Both promise to simplify software development while increasing the usability and reproducibility of biomedical research[8,9].
Package managers first appeared nearly thirty years ago as software developers sought to streamline the entire installation process.
To install via package manager, the user must only specify the desired software, called a “package;” the download, installation, configuration, and dependencies are all handled by the package manager.
Many operating systems have built-in package managers (e.g. APT), which may not be available to cluster users, while others must be downloaded and installed by the user.
Some package managers (e.g. Conda[6]) are programming language agnostic, while others are designed for a particular language (e.g pip[10]).
A more recent software distribution solution is containerization.
The end-user downloads a container “image” that includes the software, dependencies, and anything else necessary to run the software.
Though the imaged software is not typically itself installed, many do require the installation of containerization runtime software.
When run, the runtime software creates a consistent, isolated sandbox environment, then runs the imaged software inside the sandbox[11].
This sandbox design makes the images both highly portable (compatible with different computers) and easily shareable (transferable between different computers), which has already led to wide adaptation in bioinformatics[7,12].
In addition to the ease of installation and use offered by both package managers and containers, such platforms must also meet the biomedical community’s need for compatibility with high performance clusters.
However, the relative performance of these package managers and containers remains unknown.
Our review summarizes developing practices across the most common package managers and containers, while discussing the challenges, advantages, and limitations of using them from both the developer and the user perspectives.
By taking a survey of all the available package managers and container software, there is now a comprehensive list of the different attributes of each one, informing the community so that people can make educated decisions about which package manager or container makes the most sense for their project.
We also propose principles that can make packaging and containerizing of bioinformatics software more sustainable and reproducible, ultimately increasing the usability of bioinformatics software.
Discussion
Existing problems with software distribution and installation
The installation process of bioinformatics research software is typically a multi-step process, starting with the end-user locating and downloading the software.
Next is the actual installation, during which the end-user must determine what dependencies are missing and resolve them by installing the required software5.
Even in cases where the end-user is familiar with this process, they are typically installing on high-performance clusters where they are constrained by user-level permissions that prevent them from following standard installation procedures.
In addition to being difficult, manual installation of bioinformatics software can lead to irreproducible findings.
Software versions change over time, sometimes leading to different runtime behavior.
If an analysis is dependent on recently introduced features of a tool, users trying to reproduce the work with older installations will fail.
Likewise, even existing functionality can change over time.
For example, the input function in Python 2 is used to run code while in Python 3 it creates a command line prompt [???].
To prevent such issues without using a package manager, it is necessary to manually keep track of the versions of all dependencies.
root access limitations
reproducibility of findings
version conflicts
dependency resolution
Definitions and explanations of distribution system types
Package Managers
Package managers appeared nearly thirty years ago as software developers sought to automate and standardize the software installation process.
The earliest package managers (e.g. APT and RPM) were built into Linux operating systems and lacked now common features like dependency resolution.
Modern package managers are available for all major operating systems, with both integrated and user-installed options available.
Some are package managers are limited to software written in a specific programming language (e.g. pip distributes software written in Python), while others are limited to sofware with a particular purpose (e.g. Bioconda distributes omics software).
Every package managers uses its own package format, which follows the general structure shown in Figure 1.

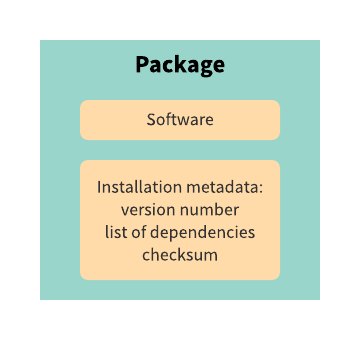

Figure 1:Schematic showing standard package contents.
Though the exact contents varies between different package formats, all include the software and relevant metadata necessary to complete installation.
The metadata gives the package manager the necessary information to install the packaged software.
To use a package manager, a user instructs the package manager to install software, then the package manager performs all the necessary steps to install the software as shown in Figure 2.
Assuming the software is not already installed, the package manager retrieves the appropriate package from the repository, a server that stores all of the available packages.
The package manager then uses the package’s metadata to determine what it needs to do to complete installation.
For most packages, this includes verifying the installation of all dependencies, which are other pieces of software that must be installed prior to the initial software being installed.

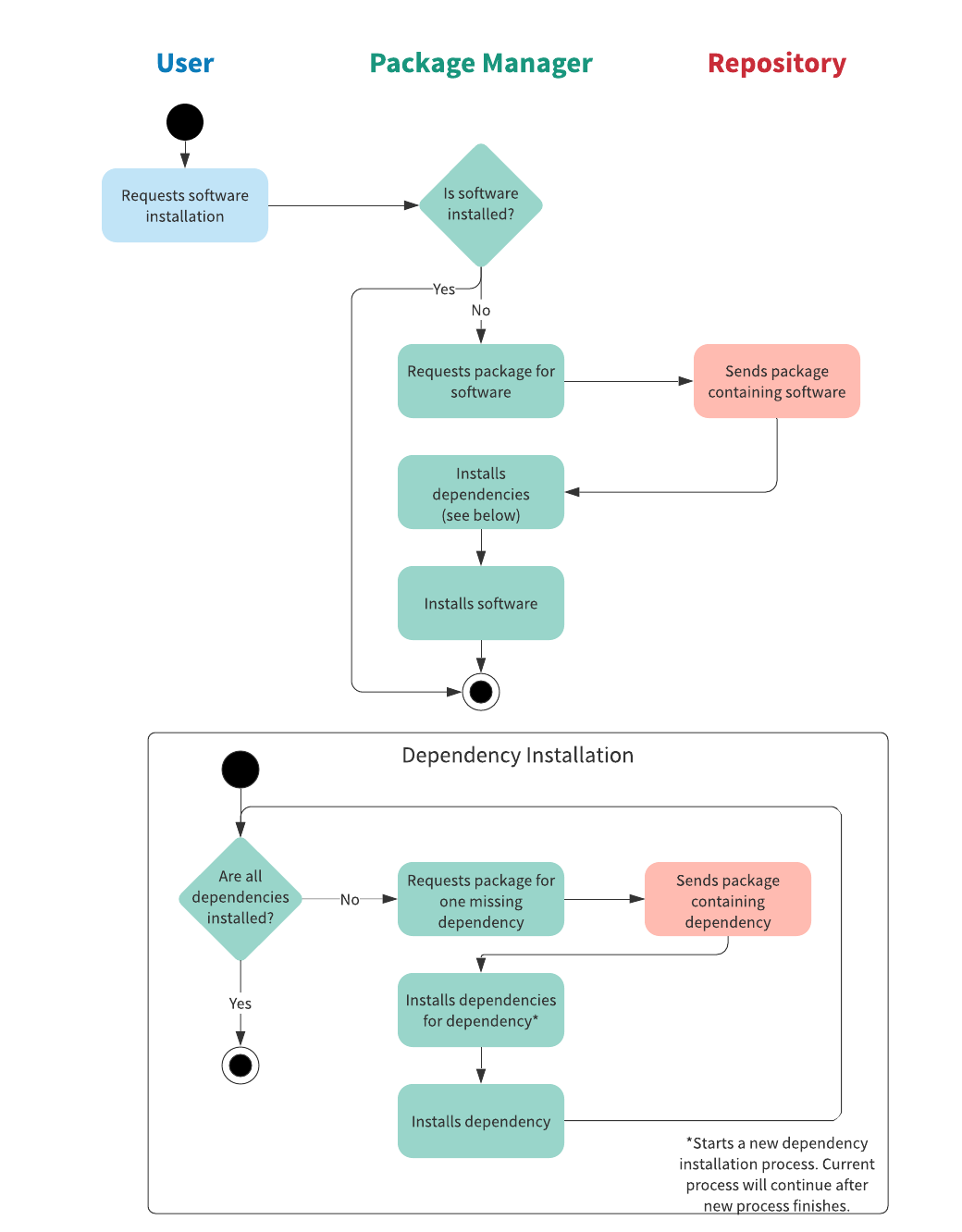

Figure 2:Standard workflow for installing software via a package manager.
The user, usually an admin, asks the package manager to install a specific piece of software. If the software is not already installed, the package manager fetches the approrpriate package from the repository. If any of the dependencies are not already installed, the package manager “loops” through the missing dependencies. Once all dependencies are installed, the original software is installed.
The package manager verifies each dependency by confirming that the dependency is already installed or installing the dependency if it is missing.
For missing dependencies, the package manager retrieves the dependency’s package from the repository and starts the installation procedure for that package.
Once all the dependencies are installed, the initially requested software is installed.
However, the package manager often goes through several iterations of this process because every dependency can have it’s own list of dependencies, in which case each of the dependency’s dependencies must be verified through the same process.
In most cases, a package manager is able to install all of the missing dependencies, but there are two relatively common problems that a package manager cannot overcome.
The first is circular dependencies, which occurs when software A has a dependency on software B and software B has a dependency on software A.
A package manager cannot install A without installing B first, but B cannot be installed without installing A first.
The second is conflicting versions, which occurs when software A and software B have the same dependency, but require different versions.
Package managers only allow one version of software to be installed at a time, preventing both A and B from having their depedencies met simultaneously.
Administrators often block users from installing software to prevent unwanted changes to both the operating system and existing sofware. This includes blocking access to package managers built into the operating system, as well as preventing users from installing their own.
benefits for the developer
mature technology - higher degree of familiarity
allows dependency specification (including versions)
-limitations for the developer
can’t always use to install missing dependencies for end-user
benefits for the end-user
package size is minimal (dependencies aren’t duplicated)
installs missing dependencies
limitations for the end-user
not always accessible (unless admin user)
can’t install multiple versions of same software
Containerization and Virtualization
One approach to sharing software involves virtualization.
Virtualization is a technique that allows the creation of instances of a software environment, often called ‘images’.
These images present many benefits for software sharing: only a single image file needs to be downloaded by users, and these image files can have all necessary dependencies for the software pre-installed by the developer, thereby avoiding installation difficulties for users.
Traditional virtual machines emulate operating systems and are run directly on the host’s hardware.
These are sometimes known as ‘type 1 hypervisors’ [1].
Later, ‘type 2’ virtualization techniques were developed, running on top of the host operating system (OS) by translating all OS instructions within the guest image [1].
While these approaches excel in portability, they incur a significant CPU and memory overhead, prompting the development of a more recent approach called Operating System (OS)-Level Virtualization.
OS-Level Virtualization runs on top of the same kernel as the host OS, allowing multiple isolated user spaces to be run in parallel and incurring lower CPU, memory, and networking overhead [1].
These user spaces, e.g. OS-level images being executed by users, are often called “containers”, but also go by a variety of other names.
Examples of this technique include Docker [3], LXC [4], OpenVZ [5], Linux-VServer [6], and rkt [7].
Of these, Docker is perhaps the most widely-used platform.
A key aspect of the Docker approach is its modularity: images are stored in a public repository on Docker’s website, and it is easy to use an existing image as a “base” to build a new image off of.
Docker images are defined by a human-readable, plaintext “Dockerfile” in which the developer specifies whether to build off of a previous base docker image and what additional software libraries and dependencies should be installed.
The Dockerfile also serves as an easy-to-read documentation of what dependencies the software is built on [8].
Docker then builds an image based on the developer’s specifications and this image can be uploaded to the Docker website.
Several limitations exist with Docker and other OS-level virtualization platforms.
OS-level images are, as the name implies, limited to a specific host operating system [1].
Security concerns have been raised about the vulnerability of containers to compromise, denial of service, and privilege escalation attacks [2].
Deployment on high-performance computing clusters is a promising possibility but presents substantial engineering challenges having to do with maximizing resource utilization and allocating resources effectively [9].

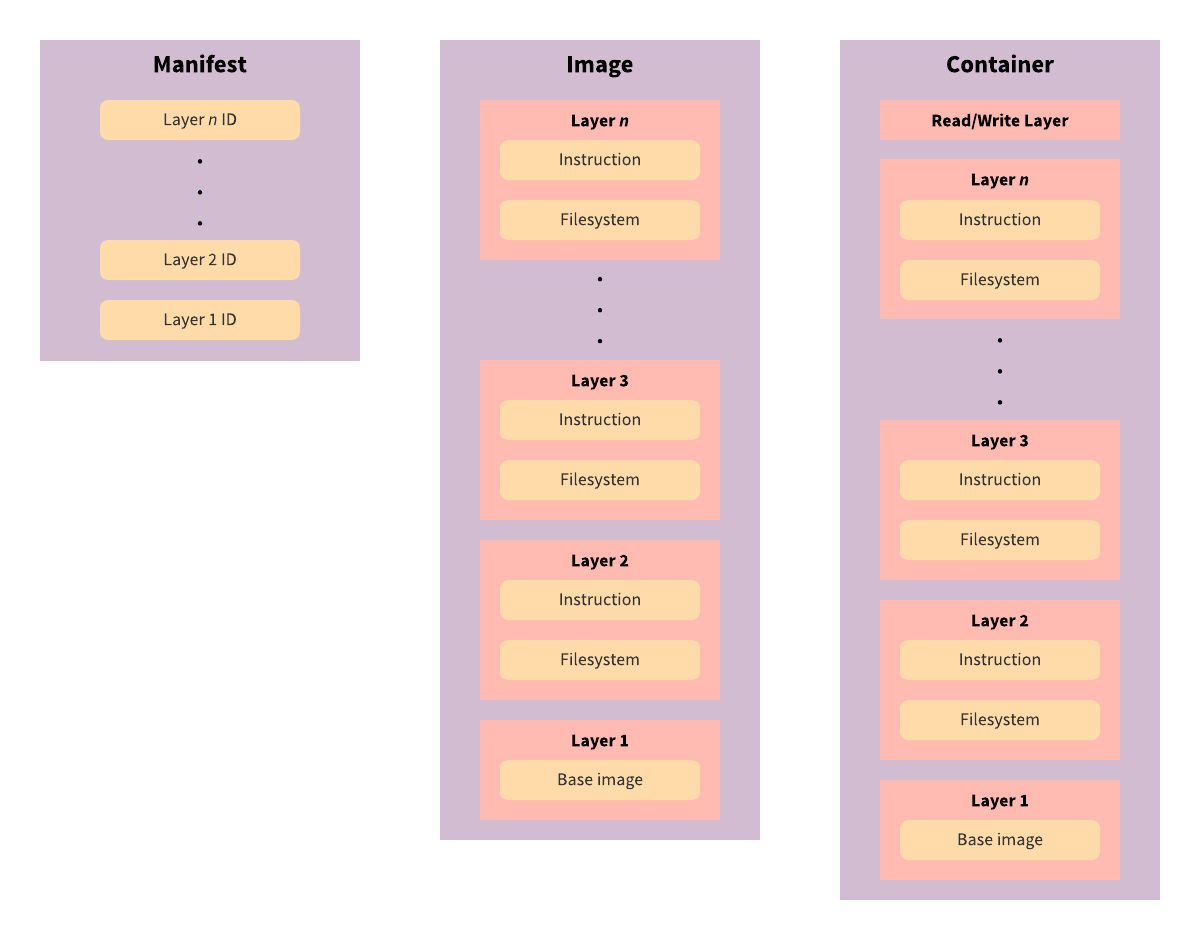

Figure 3:Schematic showing standard containerization objects.

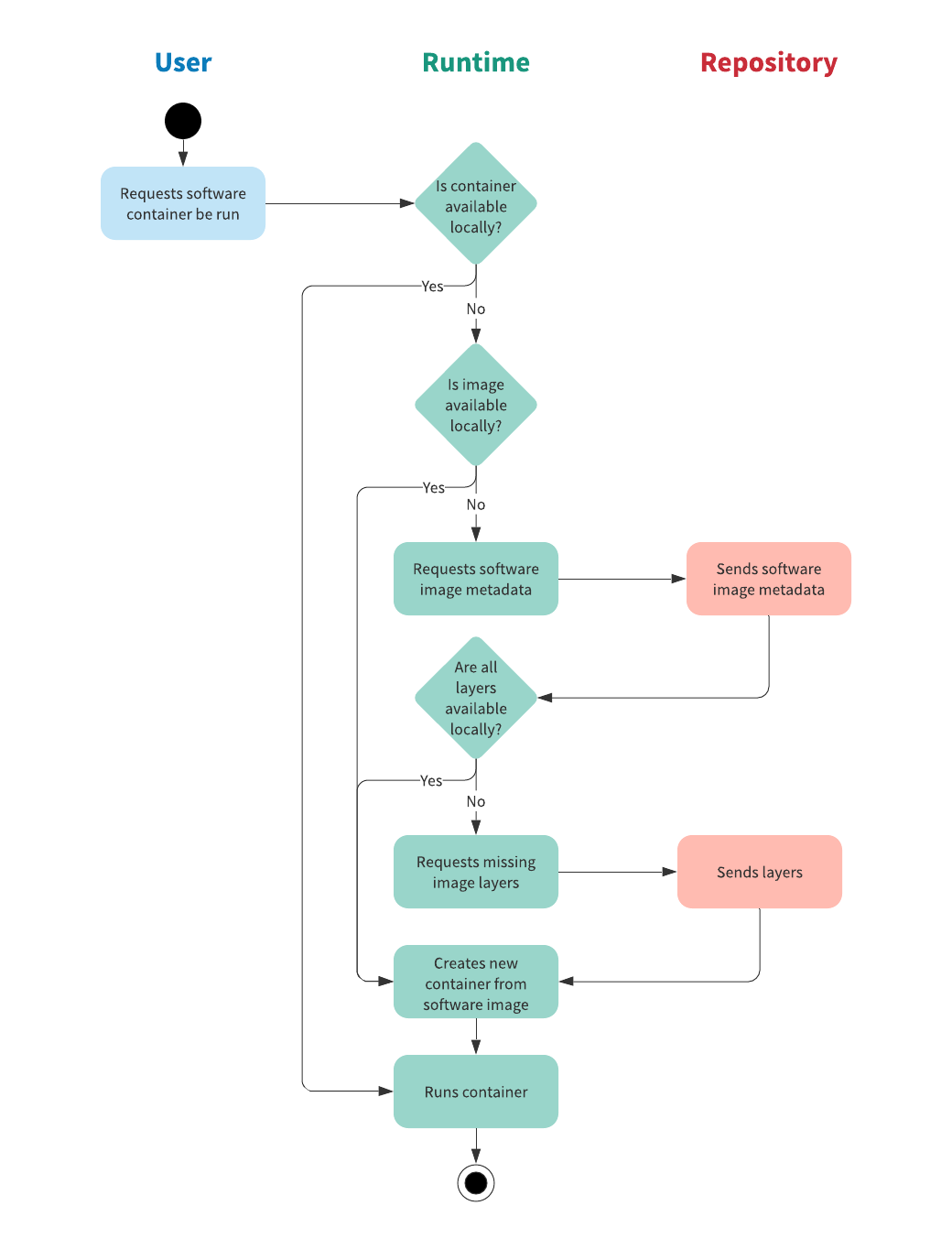

Figure 4:Running containerized software
benefits for the developer
include specific versions of dependencies
known running environment
fewer test variables
reproducibility of results
limitations for the developer
learn a new system instead of focusing on research
benefits for the end-user
no installation (except possible runtime)
no dependency issues
sandbox provides computer system security
limitations for the end-user
container size
duplication of dependencies
root access requirement to install runtime
configuration in cluster
centralized repositories
definition
channels
benefits
known download site
hosting is taken of
limitations
repo specific restrictions

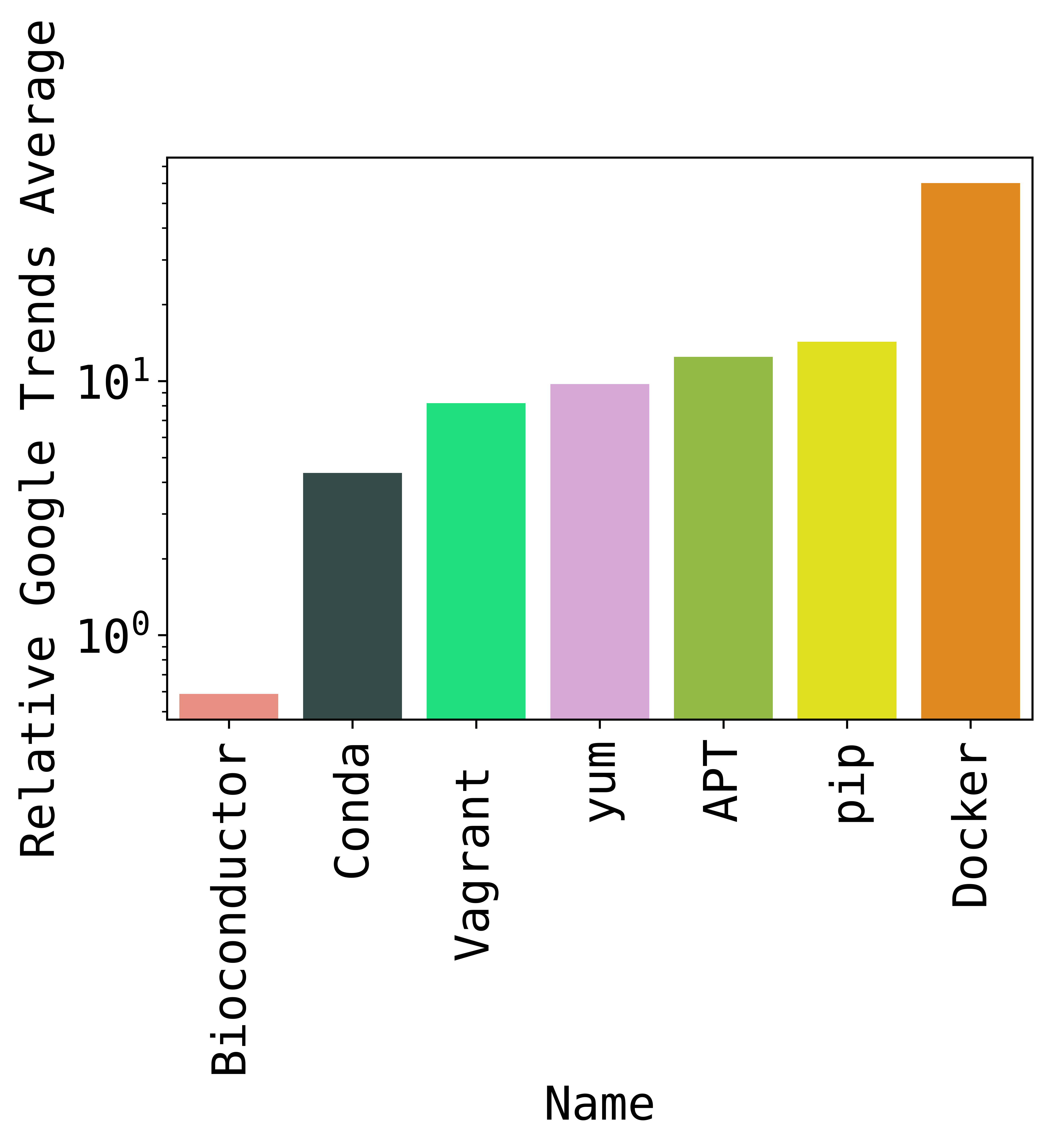

Figure 5:Relative popularity of package managers.
According to Google Trends, general use package managers have at least ten times the popularity of their omics-only counterparts, which is expected when their limited-use is taken into account.
Docker, the most popular containerization software is nearly five times as popular as the most popular package manager, indicating a software industry in trend towards containerization over the past

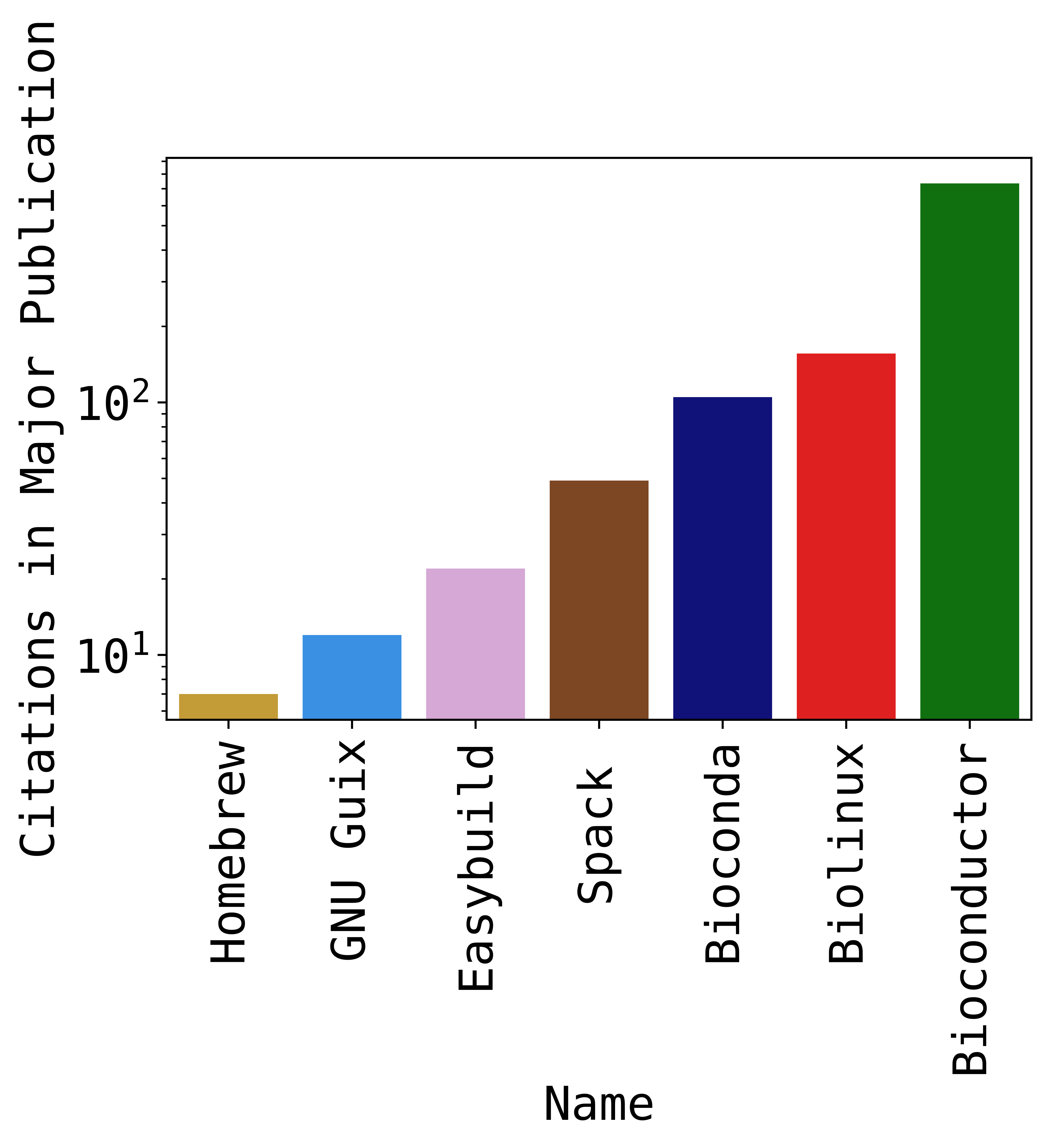

Figure 6:Usage of package managers in academia based on citations.

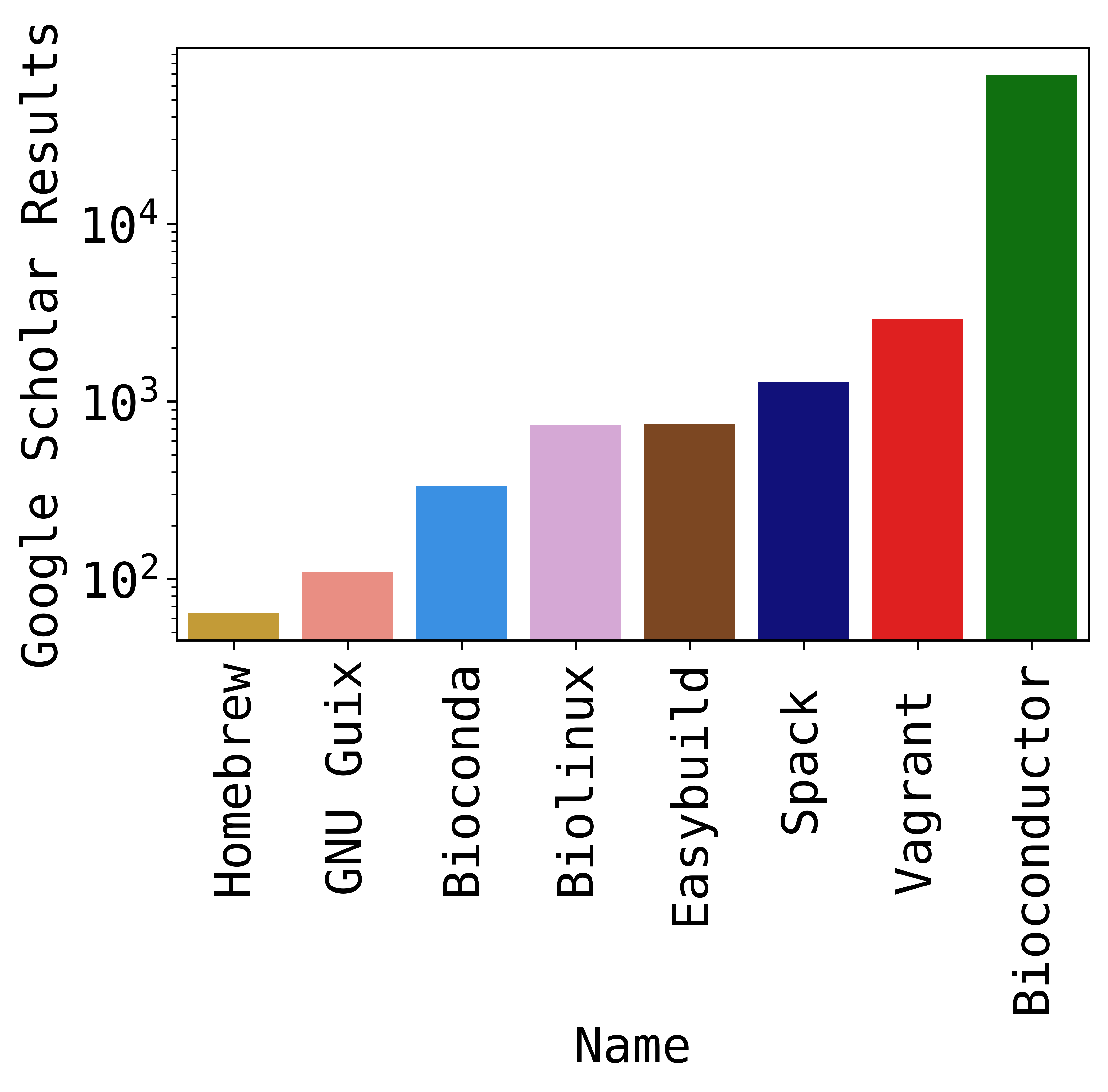

Figure 7:Usage of package managers in academia based on Google Scholar Results.

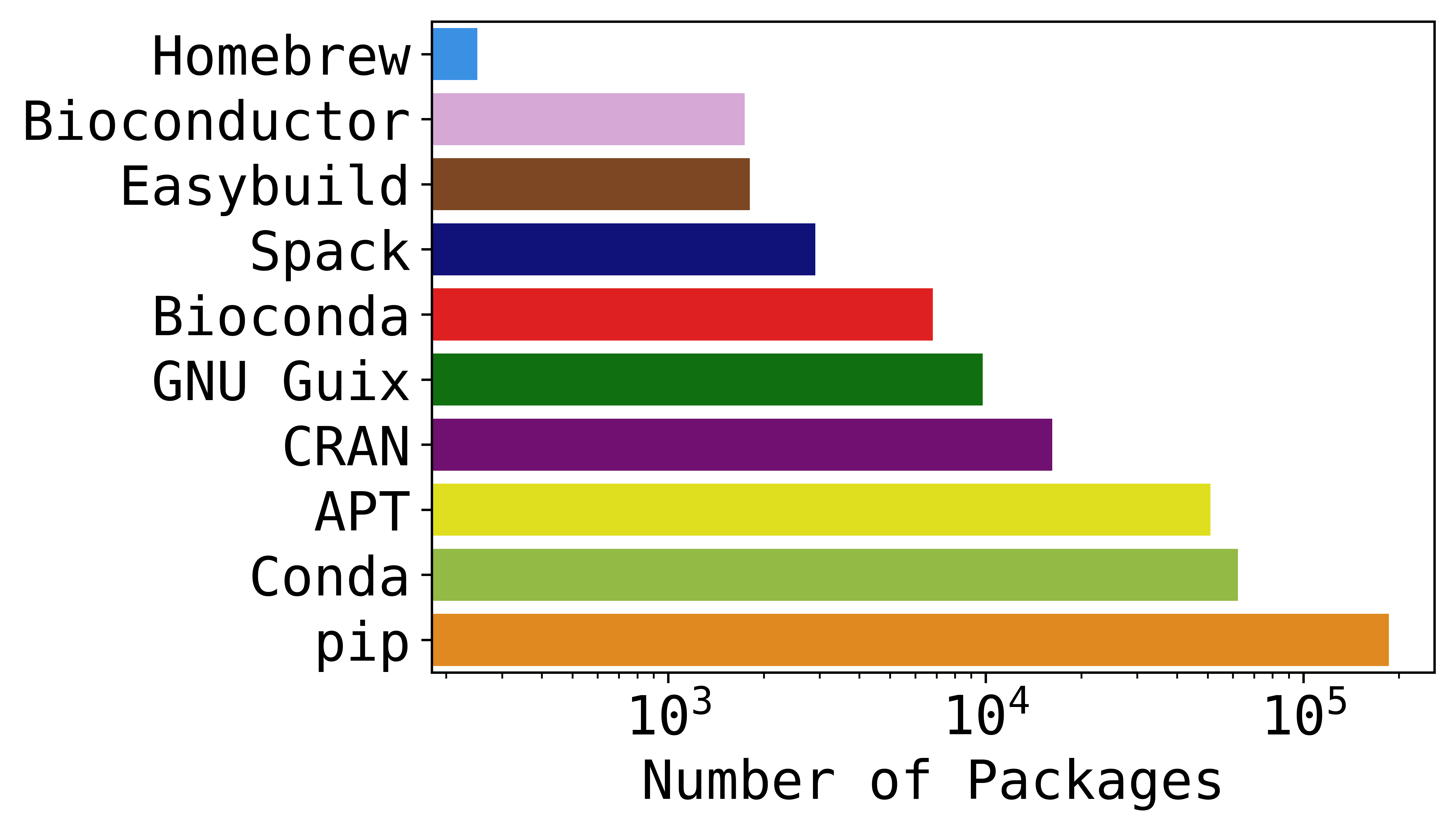

Figure 8:Total number of packages.

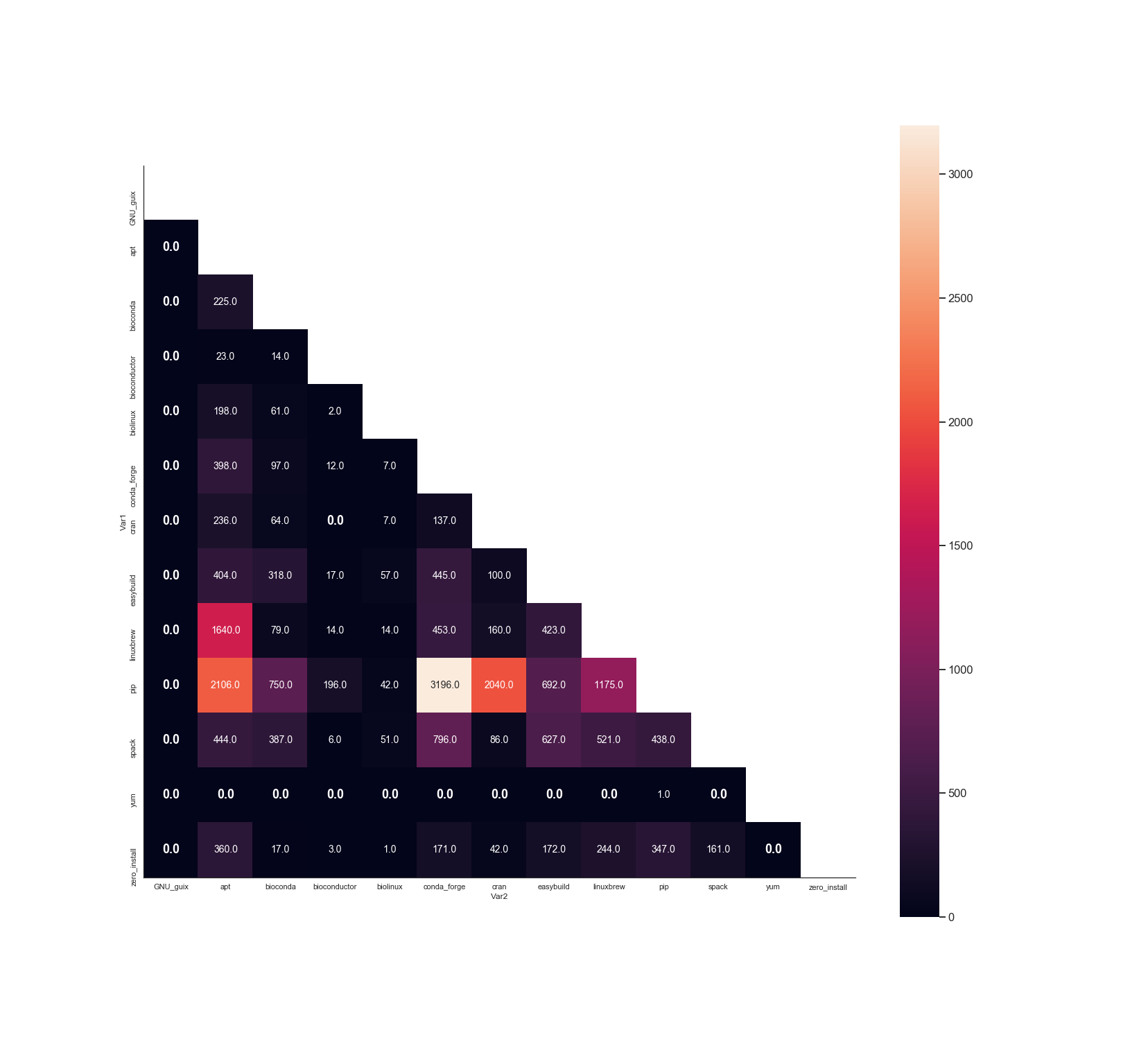

Figure 9:Packages heatmap

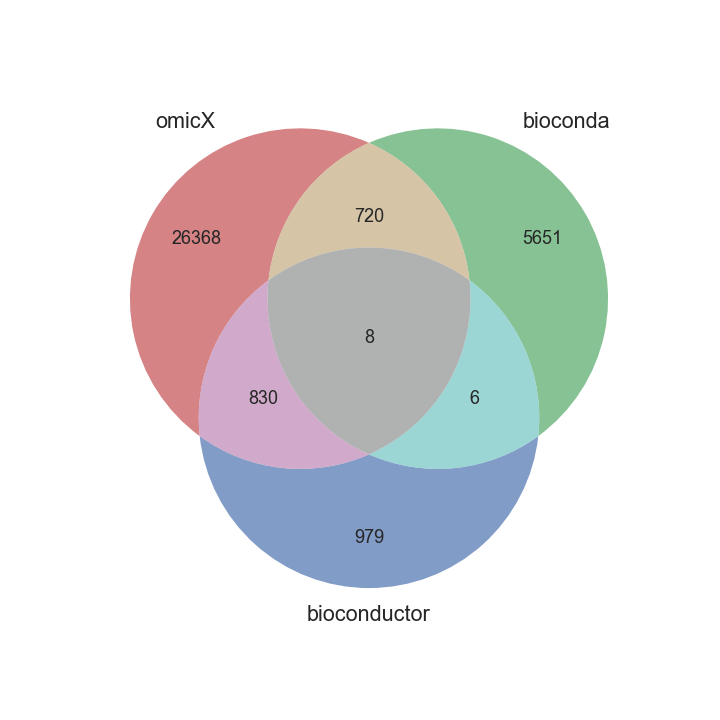

Figure 10:Overlap in available packages between omics package managers.
Omics software available on omicX or Bioconda is usually only available from that source, while software available on Bioconductor is usally also available omicX.
There is no omics package manager with an overwhelming majority of all possible software, so users can expect to get their software from multiple sources.

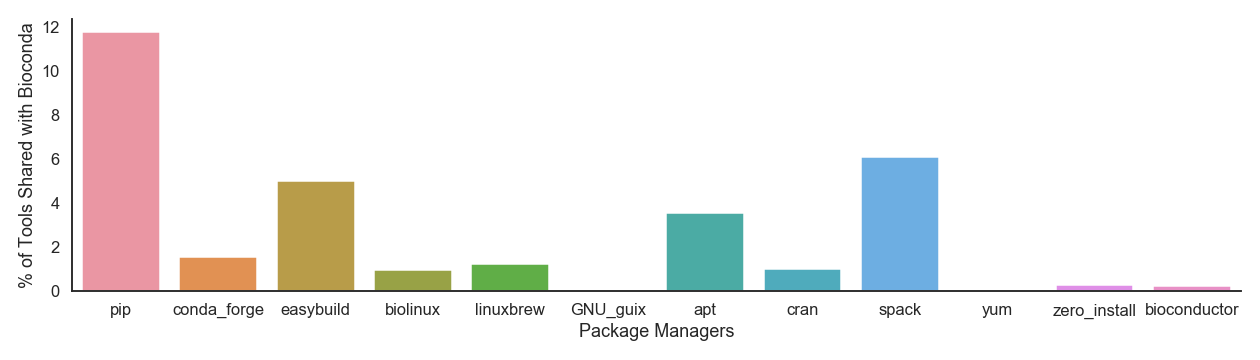

Figure 11:Availablity of Bioconda’s packages in non-omics package managers.

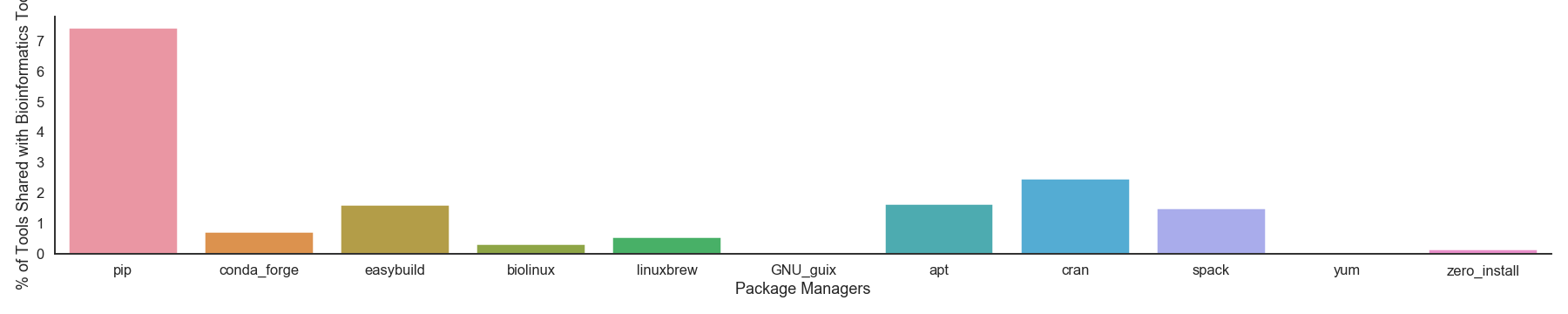

Figure 12:Availablity of Bioinformatics Tools’ packages in non-omics package managers.

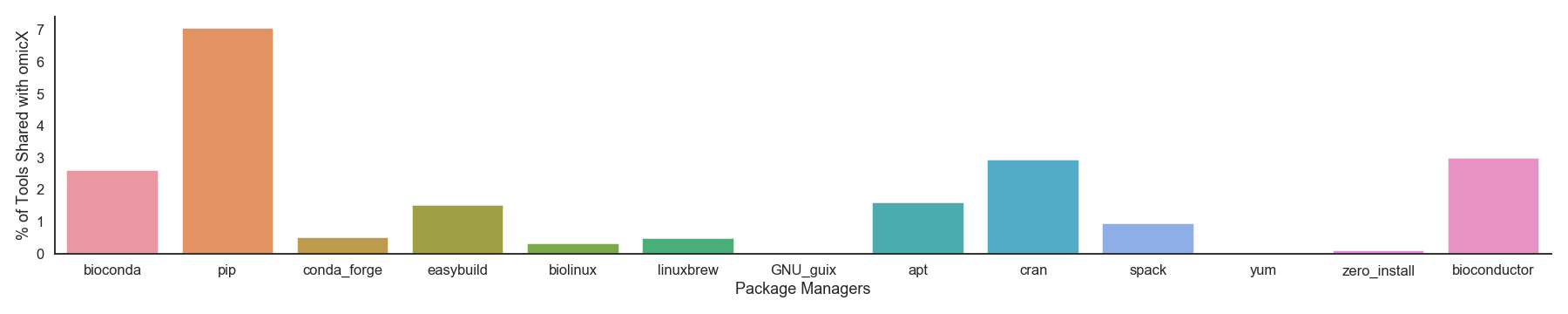

Figure 13:Availability of omicX’s packages in non-omics package managers.
Methods
5
Google Trends 10/ was used to assess the relative average popularity of each package manager.
Package managers were omitted when Google Trends did not have enough data to return a result.
The method detailed in “How do you compare large number of items in Google Trends?” 11/ was used to overcome Google Trends’ limitation of five search terms.
6
For package managers introduced with a major publication, the number of citations for their publication was found via Google Scholar 12/ and recorded.
Package managers without a major publication were excluded.
7
Each package manager’s name was used as a search term on Google Scholar 12/ and the number of results was recorded.
Package manager names that returned results for things other than the package manager were omitted.
8
The initial list of all available sofware for each package manager was compiled by parsing its online repository with WebScraper 13/
(AppImage 14,
Bioconda 15,
Bioconductor 16,
BioContainers [???],
CRAN 17,
Docker 18,
EasyBuild 19,
Flatpak 20,
GNU Guix 21,
omicX 22,
pip 23,
Singularity 24,
Snap 25,
Spack 26,
Vagrant 27,
and Zero Install 28)
or by querying the package manager directly (APT, Biocontainers, Conda, Homebrew).
Each list converted to a set with pandas 29/ and NumPy 30/, which removed all capitalization and duplicates.
The number of entries in a package manager’s set was taken to be the total number of packages available for that package manager.
9
The sets obtained in 8 were compared with the set intersection function to find the number of commonalities between all pairs of package managers.
??
The sets obtained for Bioconda, Bioconductor, and omicX in 8 were compared with the set intersection function to find the number of commonalities between all combinations of the three package managers.
11
The sets obtained for Bioinformatics Tools and the non-omics package managers in 8 were compared with the set intersection function to find the number of commonalities between Bioconda and the non-omics package managers.
12
The sets obtained for Bioinformatics Tools and the non-omics package managers in 8 were compared with the set intersection function to find the number of commonalities between Bioinformatics Tools and the non-omics package managers.
13
The sets obtained for omicX and the non-omics package managers in 8 were compared with the set intersection function to find the number of commonalities between omicX and the non-omics package managers.
